Product Overview
Product Overview & Core Mechanism

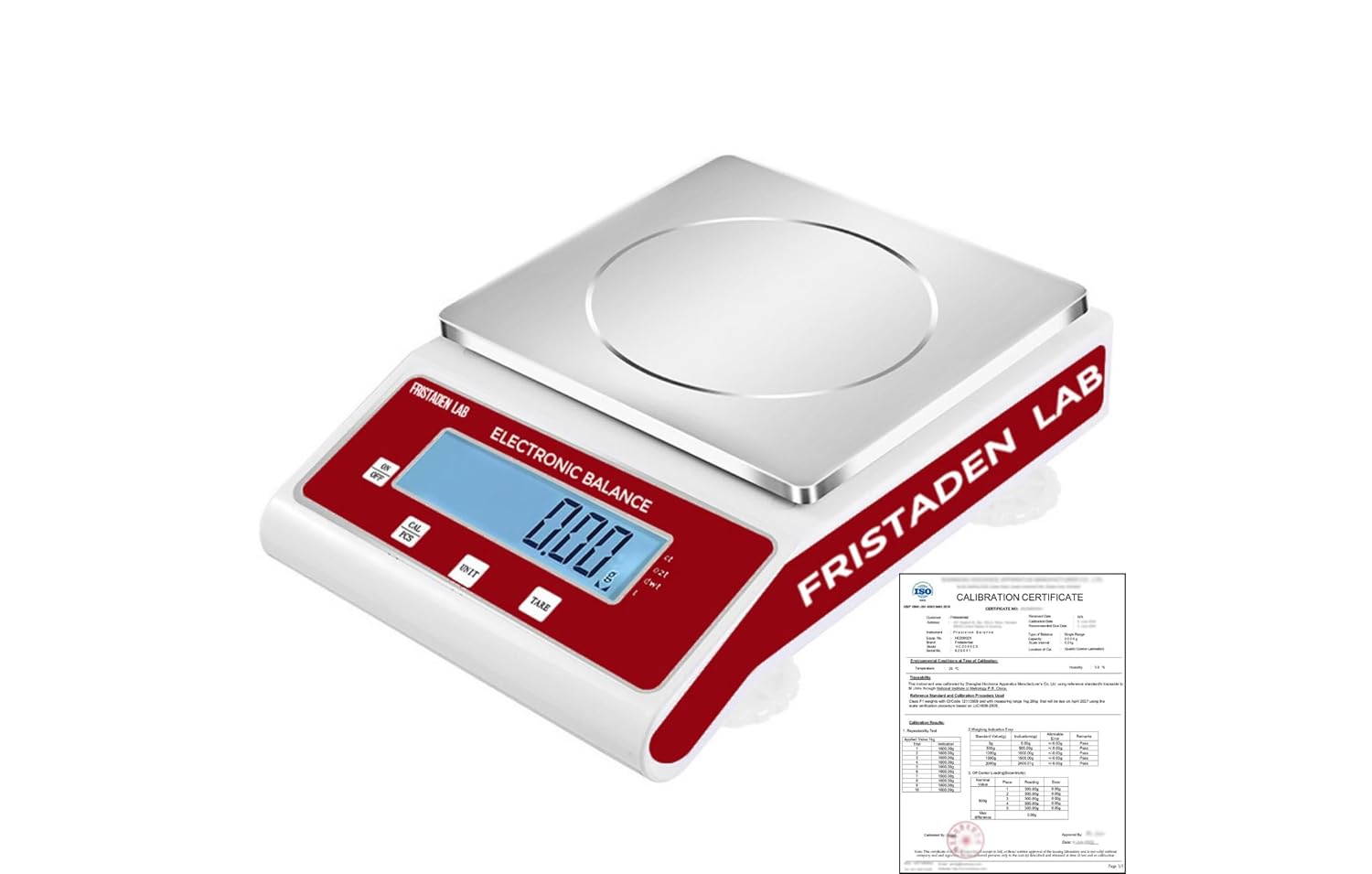

The Fristaden Lab HC Series Precision Balance is an industrial-grade benchtop scale engineered to deliver high repeatability without the steep price markup of traditional laboratory equipment. Powered by a strain gauge load cell encased in an ABS body with a cast-aluminum base, the HC Series features a 7.7" x 7.7" (195 mm x 195 mm) stainless steel weighing pan—the largest platform surface area in its performance class. Every unit includes a backlit LCD display, built-in leveling bubble, adjustable feet, and an included 500g calibration weight.
Target Applications & Industry Use Cases
- Cosmetics, Soap, and Candle Formulators: Designed for small businesses and artisan formulators requiring 0.01g sensitivity for measuring essential oils, active botanicals, lye solutions, and fragrance ratios where minor deviations disrupt batch chemistry.
- Mycologists & Cultivators: Ideal for mushroom growers requiring accurate weight measurements for agar preparation, liquid culture nutrient ratios, grain spawn moisture calculation, and dry yield tracking.
- Jewelers & Precious Metal Dealers: Built for weighing gold, silver, platinum, and gemstones with instant unit conversion across grams (g), carats (ct), pennyweights (dwt), and troy ounces (ozt).
- Academic & Research STEM Labs: Engineered for high school and university chemistry labs requiring reliable tare functionality, external multi-point calibration training, and robust overload protection.
- Hardware & Parts Manufacturing: Leverages the built-in piece counting function (PCS) to quickly audit inventories of small hardware, screws, electrical components, and injection-molded fittings.
Product Line Comparison
HC Series vs. Standard Consumer Scales: Kitchen or postage scales lack environmental noise dampening, linear multi-point calibration settings, strain gauge load cell stability, and serial data ports. The HC Series provides true lab-grade repeatability backed by optional calibration certification.
HC Series vs. FA Analytical Balances: Analytical balances (FA Series) utilize electromagnetic force restitution sensors to deliver 0.0001g (0.1mg) accuracy inside a draft shield. The HC Series uses an open-pan strain gauge load cell, offering significantly higher mass capacities (up to 15 kg) and a larger pan at an accessible price point.
HC Series vs. YP Touchscreen Series: While the YP Series includes a 5-inch touchscreen display and a round 170 mm pan, the HC Series provides a larger square pan (7.7" x 7.7"), tactile push-button control, and an optimized cost-per-gram capacity ratio.
Frequently Asked Questions & Operations
How do I calibrate the Fristaden Lab HC Series scale?

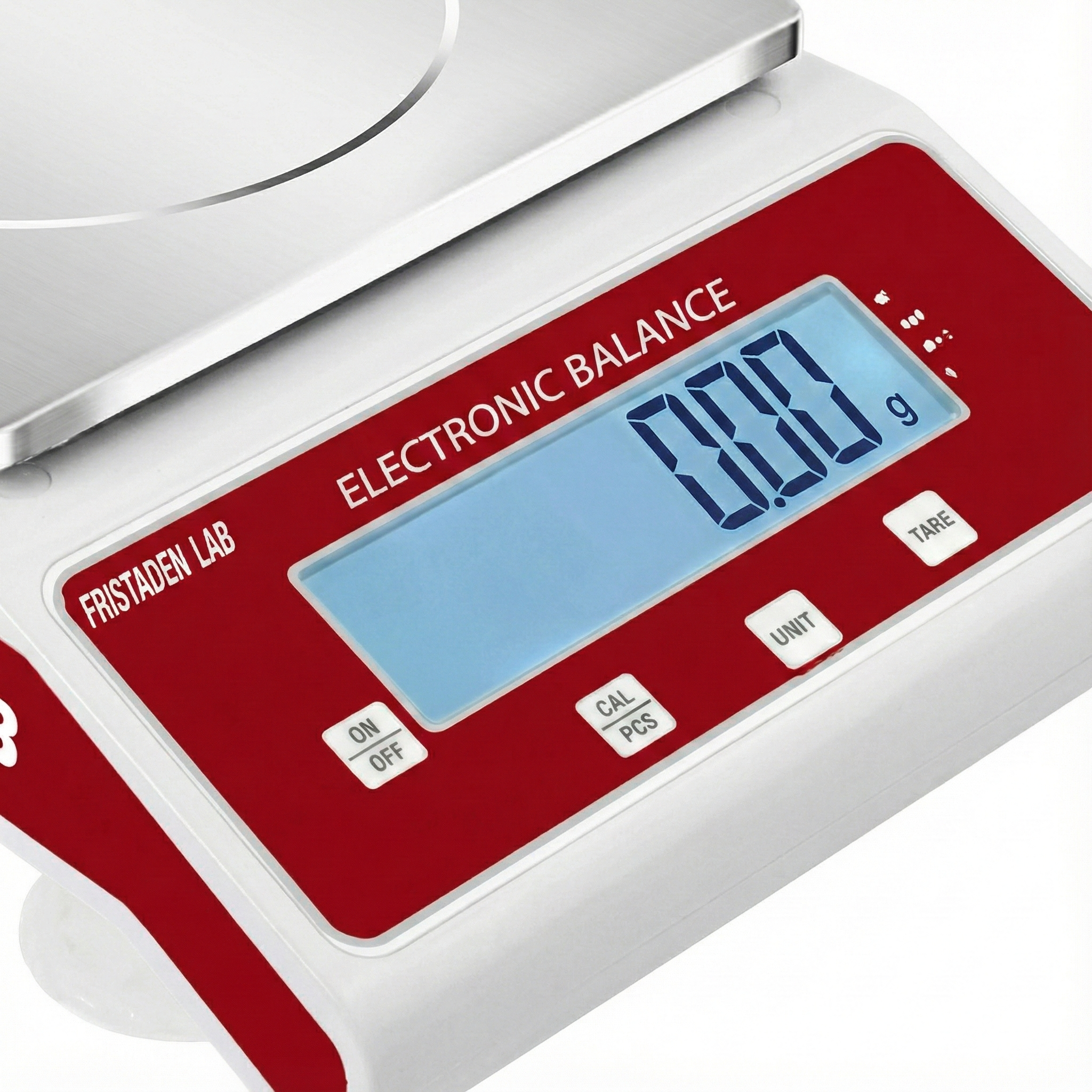

Press and hold the CAL/PCS button until "CAL" appears on the screen. Place the included 500g calibration weight on the platform. The scale will auto-detect the weight and return to 0.00g once calibration is complete. For multi-point linear calibration, press TARE twice and CAL/PCS once immediately after turning the unit on to access the 04-CAL menu.
How do I export scale data to a PC using RS232?
Connect the balance to your PC via an RS232-to-USB serial adapter cable. Configure your terminal software (e.g., COMTool) to Baud Rate: 9600, Data Bits: 8, Stop Bits: 1, Parity: None. In the scale settings menu (09-odE), select mode 2 for stable automatic output or mode 3 for continuous streaming output.
What power options are supported?
The scale runs on standard 110V AC power via the included 9V DC 400mA adapter (5.5mm x 2.1mm plug tip). It also supports an internal rechargeable 7.4V 2P lithium battery with a JST PH2.54/2P connector.
What should I do if the screen shows "-OL-" or "OVER"?
An overload message indicates that the placed mass exceeds the balance's maximum capacity (2000g, 10kg, or 15kg depending on the model). Remove the weight immediately to prevent permanent strain gauge load cell damage.
Specifications
| HC - PRECISION BALANCE 2000G | HC - PRECISION BALANCE 10 KG | HC - PRECISION BALANCE 15 KG | |
|---|---|---|---|
| Model | HC2000X | HC100001XG | HC150001XG |
| Display | Large LCD Display | Large LCD Display | Large LCD Display |
| Capacity | 2000 g | 10 kg | 15 kg |
| Readibility | 0.01 g | 0.1g | 0.1g |
| Linearity Error | ±0.03 g | ±0.03g | ±0.03g |
| Units | g, ct, kg, oz, lb, ozt | g, ct, kg, oz, lb, ozt | g, ct, kg, oz, lb, ozt |
| Stabilisation Time | ≤ 5s | ≤ 5s | ≤ 5s |
| Functions | Weighing/Tare/Counting | Weighing/Tare/Counting | Weighing/Tare/Counting |
| Weighing Pan Size | 7.7 in x 7.7 in | 7.7 in x 7.7 in | 7.7 in x 7.7 in |
| Dimensions | 11.4 in x 8.1 in x 2.8 in | 11.4 in x 8.1 in x 2.8 in | 11.4 in x 8.1 in x 2.8 in |
| Net Weight | 3.9 lbs | 3.9 lbs | 3.9 lbs |
| Power | 110V AC (US Plug) | 110V AC (US Plug) | 110V AC (US Plug) |
| Calibration Certificate | Optional | No | Optional |
Returns, Warranty and Shipping
↩️ Returns
Return any product for any reason within 30 days of purchase.
🛡️ Warranty
We will replace any faulty product or part for free within the first year of purchase. Simply contact us and we will ship you a new product or part immediately.
🚚 Shipping
All orders ship free in the continental United States with 3-5 day shipping.
Please contact us directly (or find us on eBay) for international shipping.
User Resources
Choose options
professional performance without the premium markup.
You're paying for the precision, not the brand.
HIGH PRECISION ANALYTICAL BALANCE
The Fristaden Lab Precision Analytical Balance HC20002X is designed to give you more accurate results in your lab, business or at-home workspace. The balance can calibrate and weigh up to 2000g in 5 seconds or less. The built-in counting function can total multiple pieces automatically potentially saving you time and money tallying inventory and other items.
One Year Warranty
Every American Fristaden Lab precision scale undergoes a rigorous quality control testing process. We test for margin of error, linearity, repeatability, and four points testing. Our warranty period extends a full one-year. We will repair or replace your counting scale should there be a defect during the warranty period.
LAB QUALITY
WEIGH UP TO 15 KG
The precision balance’s stainless steel pan can easily hold chemicals, powders, herbs, jewelry, precious metals, tickets, coins and other small items. Up to 15KG capacity and easy conversions between grams (g), ounces (oz), pounds (lb) carats (ct), kilograms (kg) and troy ounces (ozt) make the scale ideal for laboratories, schools and universities, businesses, jewellers, and more.
High Accuracy
The electronic scale has a high, 0.01g precision. To ensure accuracy, the balance features a built-in level; adjustable leveling feet; an overload alarm; error indication; and external calibration. The linearity error is ±0.03g.
