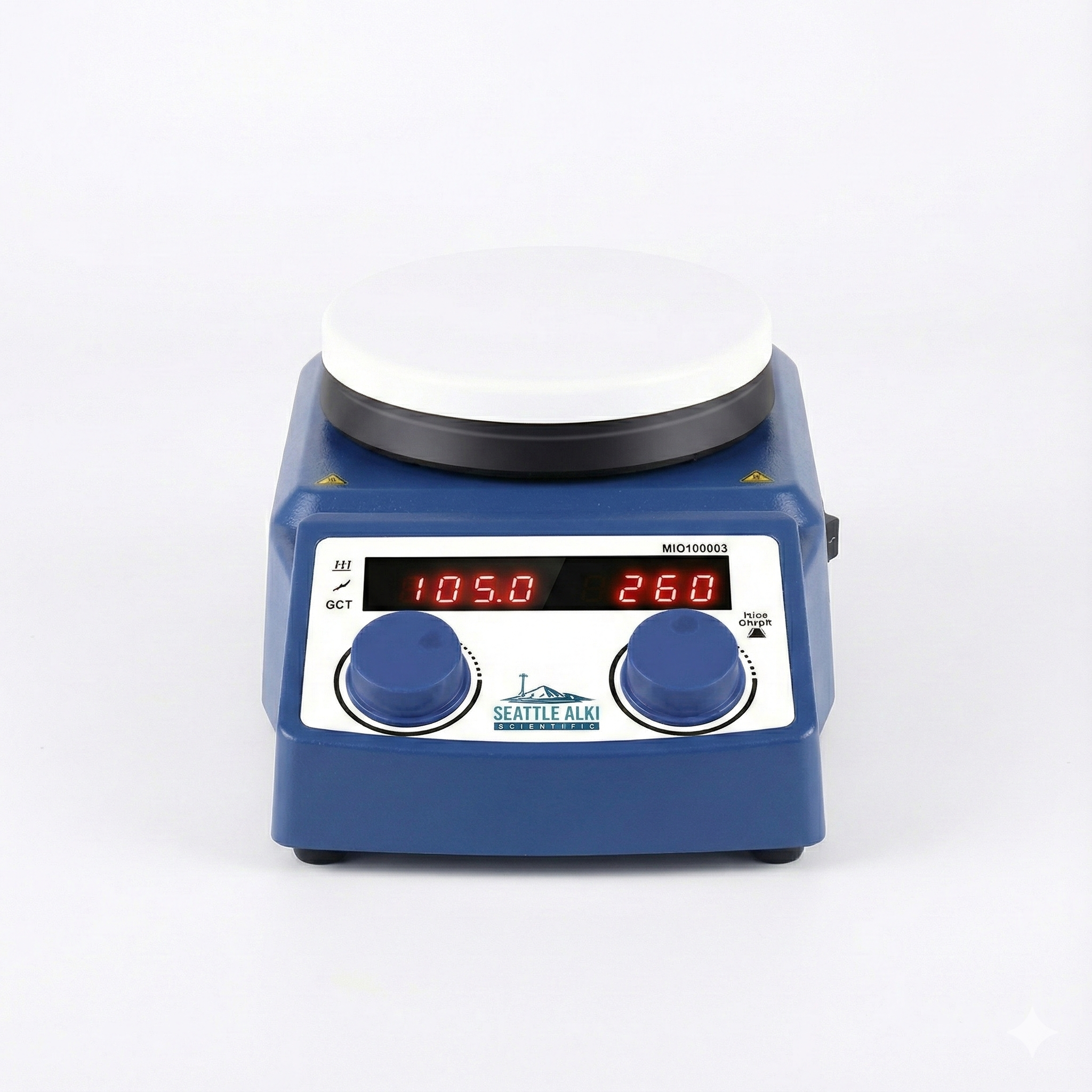

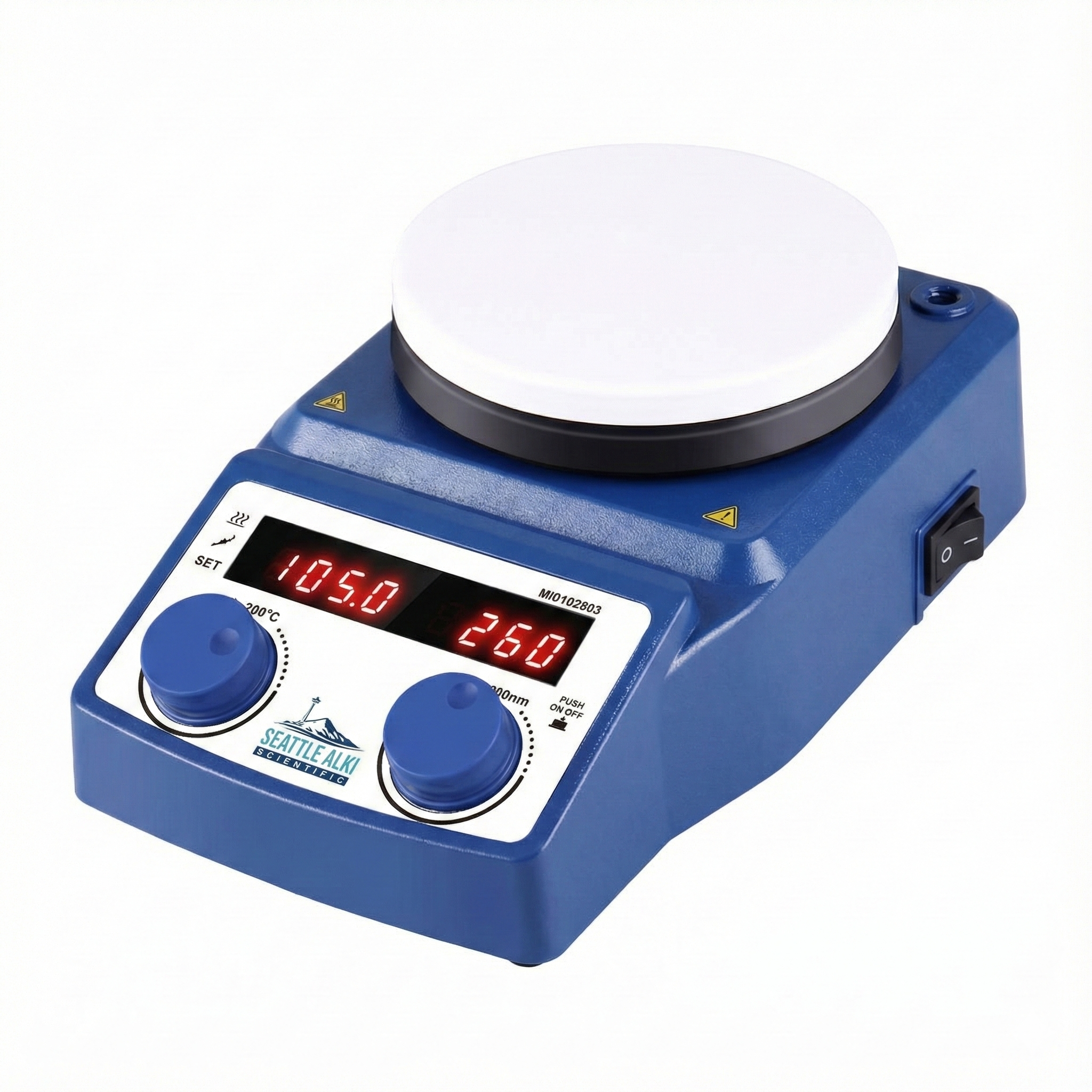

Digital Magnetic Hotplate Stirrer - 5L

DESCRIPTION

MODEL: MI0102003 (5L)

User Manual

Accurate Digital Controls and LED Display

The magnetic hotplate stirrer's temperature and stirring speed can be easily adjusted and independently controlled by turning the quick-access 3D digital wheels on the machine.

Both the temperature and the stirring speed are reflected in an easy-to-read LED digital display to give you more control and accuracy in your experiments and projects.

When the included PT1000 sensor is connected, the LED display with alternate between the sensor’s temperature reading and the hot plate temperature.

Fast-Heating Ceramic Plate

The Φ135mm hotplate has a large, 5,000ml capacity making it ideal for both smaller and larger volume heating and mixing projects. The hotplate is stainless steel with a ceramic coating to ensure fast heating, even heat disbursement and corrosion resistance.

Strong Magnetic Field

The magnetic stirrer has a strong magnetic field to keep the stir bar firmly in place. The stirring speed ranges from 100-1500rpm.The recommended max. magnetic stir bar size is 55mm x Φ10mm. One stir bar is included with the unit so you can use the machine right out of the box.

Powerful Heating

The hotplate powerful, 600W heating element with a room temp. to 280˚C temperature range and a 50-320˚C safety temperature range.

The machine has a 50°C residual heat warning to prevent the risk of burns.

Auto. Temperature Recognition

The stirrer includes a PT1000 temperature sensor to check the liquid’s temperature inside of the beaker. The sensor gives you even more precision and accuracy in your experiments and projects.

he machine can automatically identify the PT1000 temperature sensor and switch to this mode of operation. When the PT1000 sensor is connected, the LED display with alternate between the sensor’s temperature reading and the hot plate temperature. The temperature display accuracy is ±0.1˚C; with the temperature sensor, it’s ±1˚C.

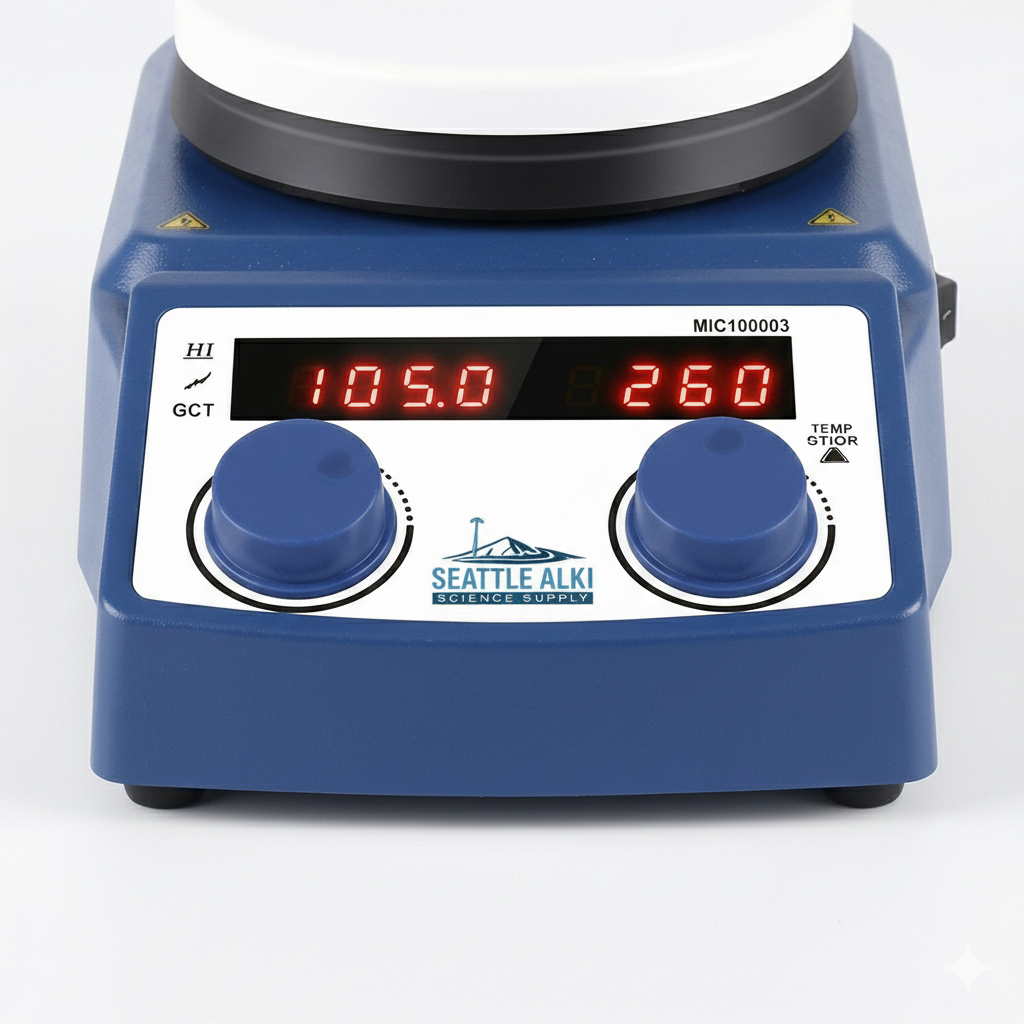

LED Digital Display

The large easy-to-read digital display clearly reflects the temperature and stirring speed

Lab Quality

The American Fristaden Lab MI0102003 Magnetic Hotplate Stirrer is made from lab-quality materials built to last year after year.

Guarantee

Specifications

• Brand: Fristaden Lab
• Capacity: 5000mL
• Speed Range: 100-1500rpm
• Temperature Range: RT-280°C
• Safety Temperature: 50-320°C
• Temperature Display Accuracy: ±0.1°C
• Heating Power: 600W
• Hot Plate Dimensions: Φ135mm
• Unit Dimensions: 268mm x 160mm x 86mm
• Warranty: 1 Year

Packing List

• Fristaden Lab Digital Magnetic Hotplate Stirrer - 5L

• PT1000 Sensor
• Sensor Holder
• Magnetic Stir Bar
• Screwdriver
• Power Cable
• User Manual
