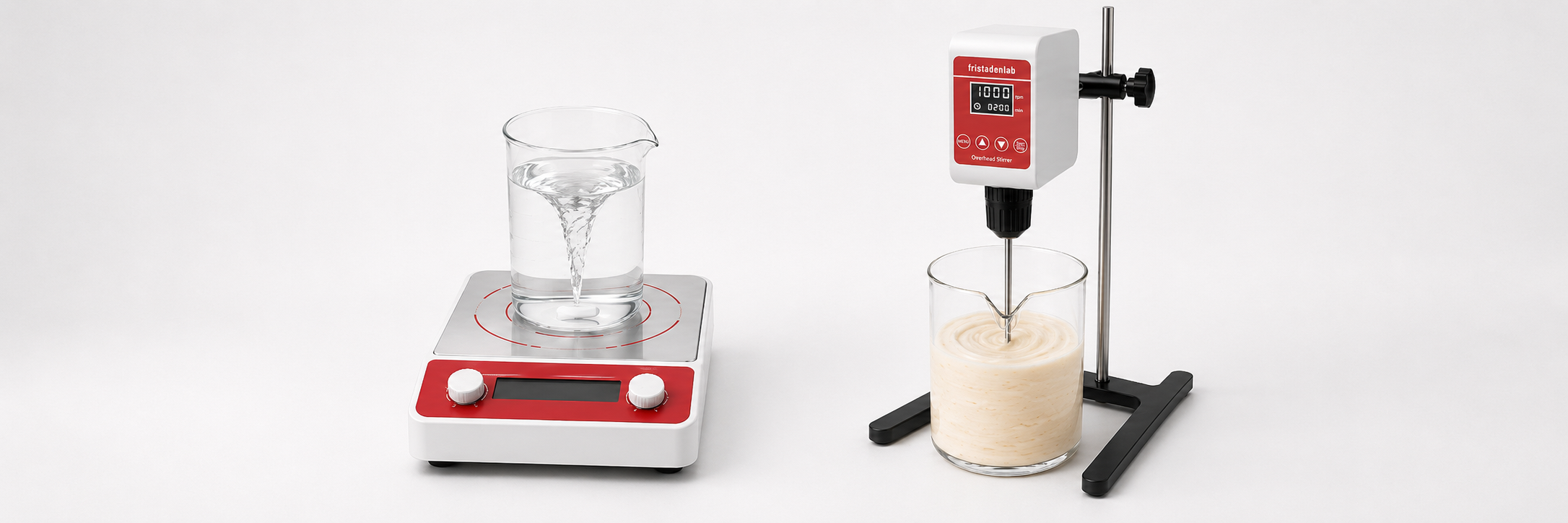

Magnetic Stirrer vs. Overhead Stirrer: Which One Does Your Lab Actually Need?

Almost every lab, kitchen-lab, or production bench hits the same fork in the road eventually: do you reach for a magnetic stirrer or an overhead stirrer? Both are built to mix liquids, but they solve very different problems. Pick the wrong one and you'll either watch a stir bar spin uselessly in a thick batch, or pay for motor power you'll never need on a beaker of buffer. Here's how to tell the two apart and choose correctly for your samples, volumes, and budget.

What's actually different between them?

A magnetic stirrer sits under your vessel and spins a small PTFE-coated stir bar using a rotating magnetic field generated inside the base plate. Nothing touches the liquid except the bar itself.

An overhead stirrer (sometimes called a lab mixer or stirrer motor) works from above: a motor mounted on a stand drives a shaft and interchangeable mixing head — paddle, propeller, or anchor — straight down into the sample. Because the drive is mechanical, not magnetic, it can generate real torque.

The short version: if your sample pours like water, a magnetic stirrer will do the job. If it pours like honey, contains solids, or fills more than a few liters, you need the torque of an overhead stirrer.

🧲 Magnetic stirrers: how they work and what they're built for

A rotating magnet under the plate spins a stir bar dropped directly into your sample. Several Fristaden Lab units combine this with a heating plate, so stirring and temperature control happen in one footprint — useful for anything that needs gentle warming while it mixes.

Common jobs for a magnetic stirrer:

• Buffer and reagent prep

• Routine mixing in beakers and flasks

• Titrations and volumetric solution work

• Small-batch, low-viscosity liquids

• Dissolving solids into aqueous solutions, often with light heat

Where magnetic stirrers hit their ceiling: they generally struggle above roughly 5,000–10,000 mPa·s of viscosity, they aren't built for large batches, and solids or suspended particles can knock the stir bar out of magnetic coupling entirely — it'll start skipping or "walking" around the vessel instead of spinning cleanly.

🌀 Overhead stirrers: how they work and when they earn their keep

An overhead stirrer clamps to a stand above the vessel, and a motor drives a shaft through a chuck into a stirring head. Because it's a mechanical drive rather than a magnetic one, torque can stay high and steady even as the sample thickens — which is exactly where a stir bar would stall out.

Common jobs for an overhead stirrer:

• Viscous liquids, gels, creams, and pastes

• Suspensions and emulsions with solids or immiscible phases

• Batches from a few liters up to pilot scale

• Formulation and R&D mixing

• Any process where constant speed under load and reproducibility matter

👉 Good to know: overhead stirrers are modular. The same motor and shaft can be paired with different mixing heads as your sample changes, so one unit can cover a much wider range of viscosities and batch types over time than a fixed magnetic stirrer can.

Side-by-side: viscosity, volume, and performance

📋A quick way to decide

Work through these in order — the first one where a magnetic stirrer doesn't fit usually settles it:

1. Check the viscosity. Flows freely like water or a light buffer? A magnetic stirrer is usually enough.

2. Check the volume. Past a few liters, most magnetic stirrers can't hold reliable coupling — move to an overhead stirrer.

3. Check for solids or multiple phases. Suspensions, emulsions, and particle-laden samples need mechanical torque, not a magnetic field.

4. Decide if you need heating. If viscosity is low and you also need heat, a hotplate magnetic stirrer covers both in one unit.

5. Think about frequency and variety of use. If you're mixing different sample types daily, an overhead stirrer's interchangeable heads offer more flexibility long-term.

📌 Bottom line

There's no single winner in the magnetic stirrer vs. overhead stirrer debate — just the right tool for what's in front of you. Reach for a magnetic stirrer for everyday, low-viscosity work: buffers, reagents, titration prep, routine sample mixing. Reach for an overhead stirrer once viscosity, volume, or sample complexity outgrows what a stir bar can handle — formulations, suspensions, emulsions, and scale-up all call for real mechanical torque.

Many labs end up keeping both on hand: a magnetic stirrer for daily routine work, and an overhead stirrer on standby for the samples that need real force behind them.

💬 FAQs

Can a magnetic stirrer replace an overhead stirrer? Only for low-viscosity, low-volume samples. Once viscosity or batch size grows, a magnetic stirrer will lose grip on the stir bar or fail to move the liquid at all, and you'll need an overhead stirrer.

Can an overhead stirrer handle low-viscosity samples too? Yes, easily. The trade-off is footprint, setup time, and cost — which is why simple routine tasks are usually still better served by a magnetic stirrer.

What's the difference between a stir bar and a mixing head? A stir bar is a small, sealed rod driven by a magnetic field inside a magnetic stirrer. A mixing head (paddle, propeller, or anchor) is mechanically driven on the shaft of an overhead stirrer and can be swapped out to suit the application.

Which is better for large batches? An overhead stirrer. Fristaden Lab's range covers batches up to 20 L with steady torque delivery — well beyond what a magnetic stirrer can maintain.

Do I need a hotplate magnetic stirrer or a plain one? If your workflow regularly involves dissolving solids or holding a set temperature while mixing, a hotplate model like the SH-2 or SH-3 saves you a separate heating step and bench space.

When is an overhead stirrer necessary? Whenever the sample is viscous, contains solids or multiple phases, exceeds a few liters, or the process needs to be consistent and repeatable batch after batch — that's overhead stirrer territory.
